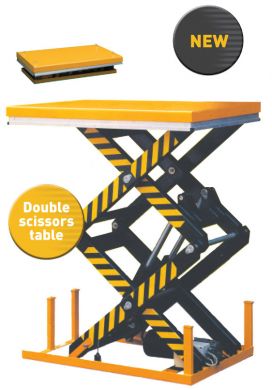

WARRIOR Static Lift Tables (Mains Operated) (HW1001)

Product Information

• WARRIOR Lift Tables can be used either at ground level or in a pit
• The lift up to 1780mm and also help alleviate bending and twisting often found in industrial environments
• Tables are powered by AC380v/50Hz/3 phase mains
• Pressure relief valve fitted to protect the hydraulic system
• Oilite bushes on axle pivots
• Emergency check valve to ensure slow controlled descent in the event of a hydraulic line failure
• Removable lifting eyes to facilitate easy handling and installation
• Tables have fully interlocked descent arrestors should there be an obstruction
• These tables are manufactured to EN1570:1999 and are IP54 protected
• Available ex stock in 2 standard capacities
• 18 models available on request (1000Kg - 4000Kg)
• Capacity 1000Kg
• Maximum height 1000mm
• Minimum height 205mm
• Platform (L x W) 1300mm x 820mm
• Lifting cycle 20 seconds
• Power pack 1.1 kw
• Net weight 160Kg

Price: ?1558.70
