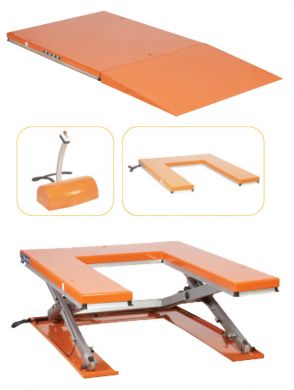

WARRIOR Static Lift Tables (Mains Operated) (HY1001)

Product Information

• Low Profile Loft Tables achieve a low closed height and usually eliminate the need for a pit
• They lift up to around 860mm and also help alleviate bending and twisting often found in industrial environments
• Tables are controlled by a 24V 'satellite' hydraulic power pack consisting of up, down and emergency stop buttons
• Tables are powered by AC380v/50Hz/3 phase mains
• Pressure relief valve fitted to protect the hydraulic system
• Oil less bushing on axle pivots
• Emergency check valve to ensure slow controlled descent in the event of a hydraulic line failure
• Removable lifting eyes to facilitate easy handling and installation
• Tables have fully interlocked descent arrestors should there be an obstruction
• These tables are manufactured to EN1570:1999 and are IP54 protected
• Available in two standard capacities 1000Kg & 1500Kg the units have both full top and U shaped derivatives
• Capacity 1000Kg
• Max height 860mm
• Min height 85mm
• Platform (L x W) 1450mm x 1140mm
• Lifting cycle 20 seconds
• Stroke 775mm
• Power pack 0.75 kw
• Net weight 357Kg

Price: ?1950.00
